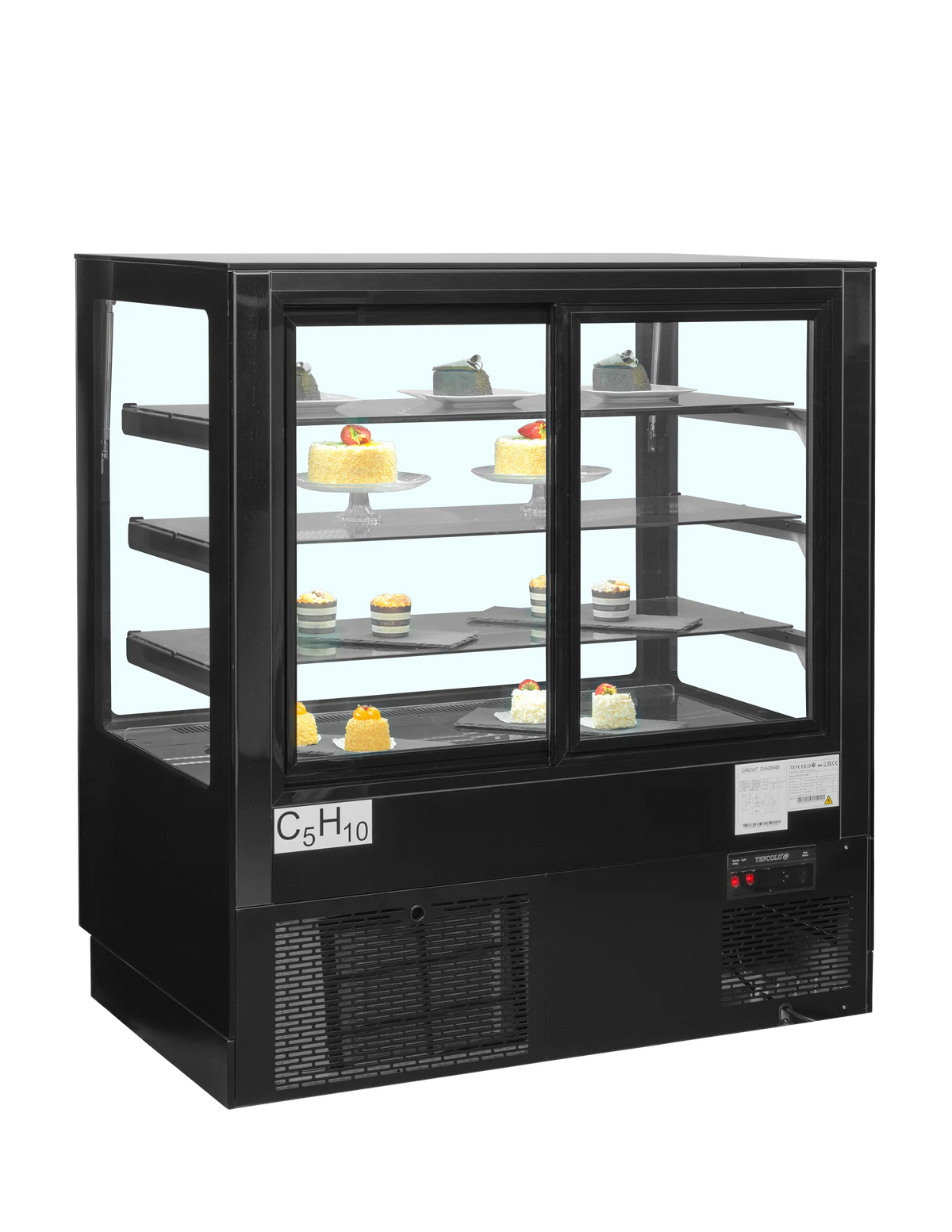

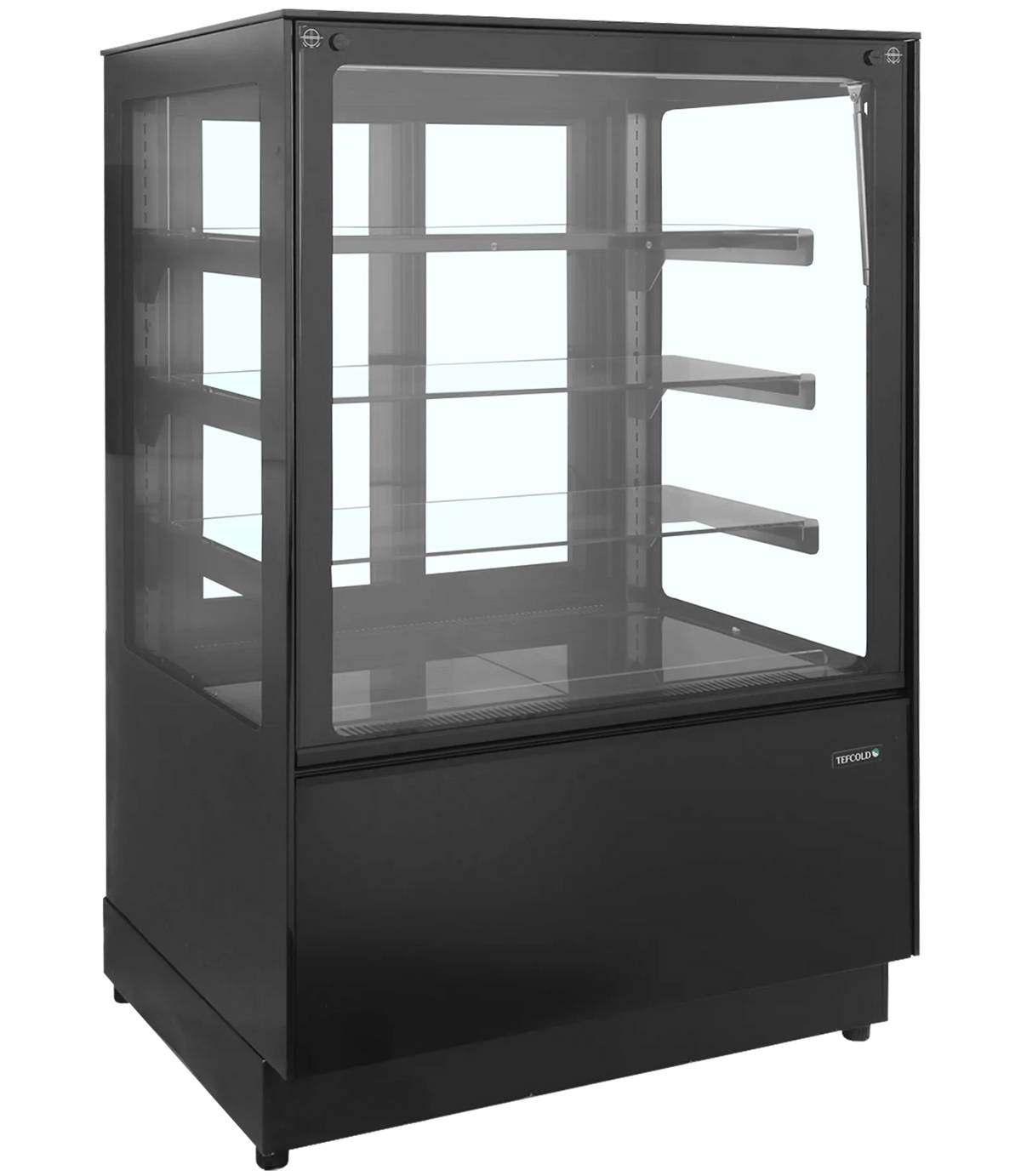

Refrigerated display counter with 3 shelves - Tefcold PDA3-CTF90B-1 - 5.31 kWh/24h

Elegant floor-standing refrigerated display counter for cafés and bakeries. It combines easy cleaning, attractive product presentation and low energy consumption at a highly competitive price. The front glass can be tilted down, making it easy to clean the shelves and front glass. The condenser dust filter should be cleaned at least every two months. It is easy to remove so you can rinse it with water. This helps extend the service life of your display case.

Advantages

• Excellent product visibility

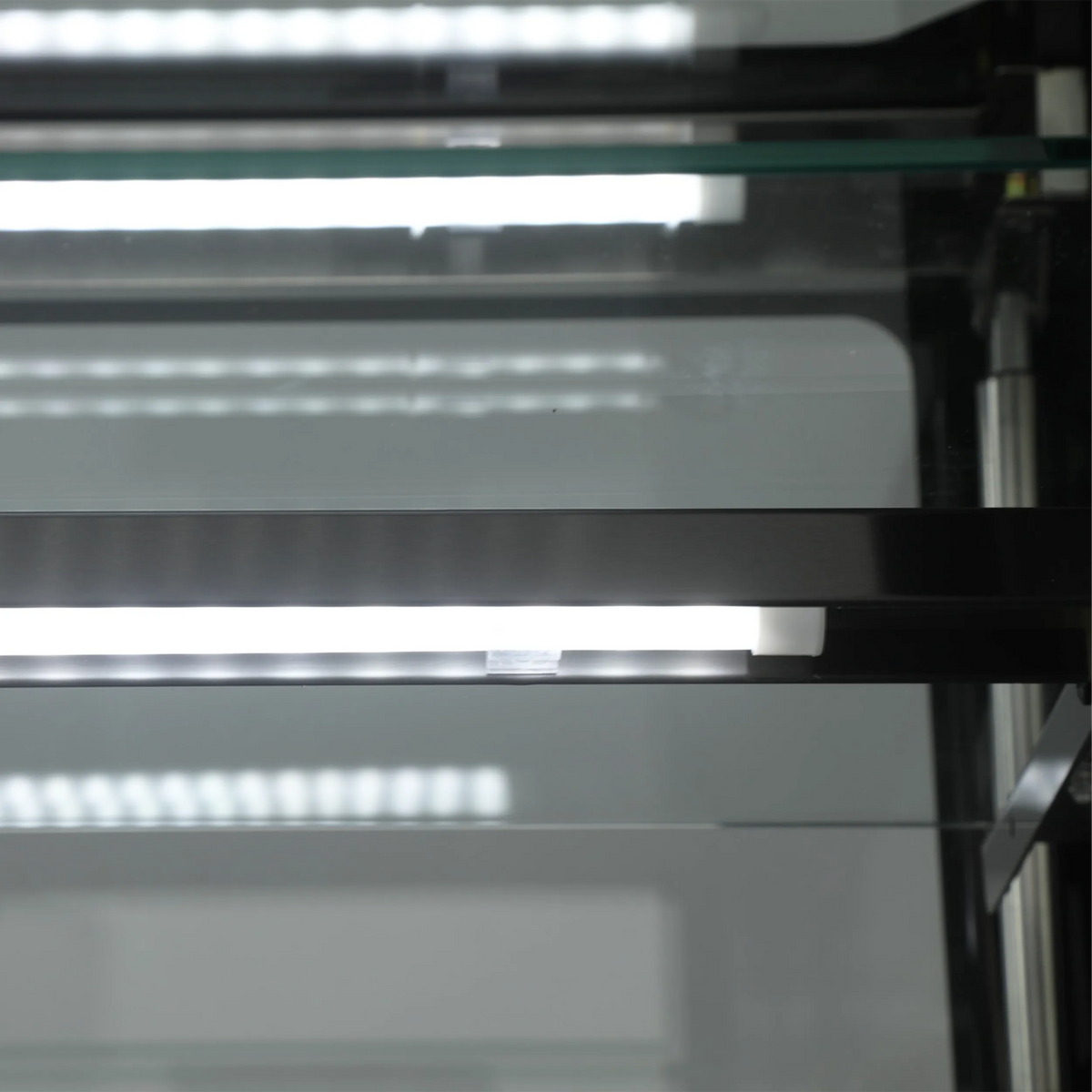

• LED lighting under each shelf
• Temperature class 3M1

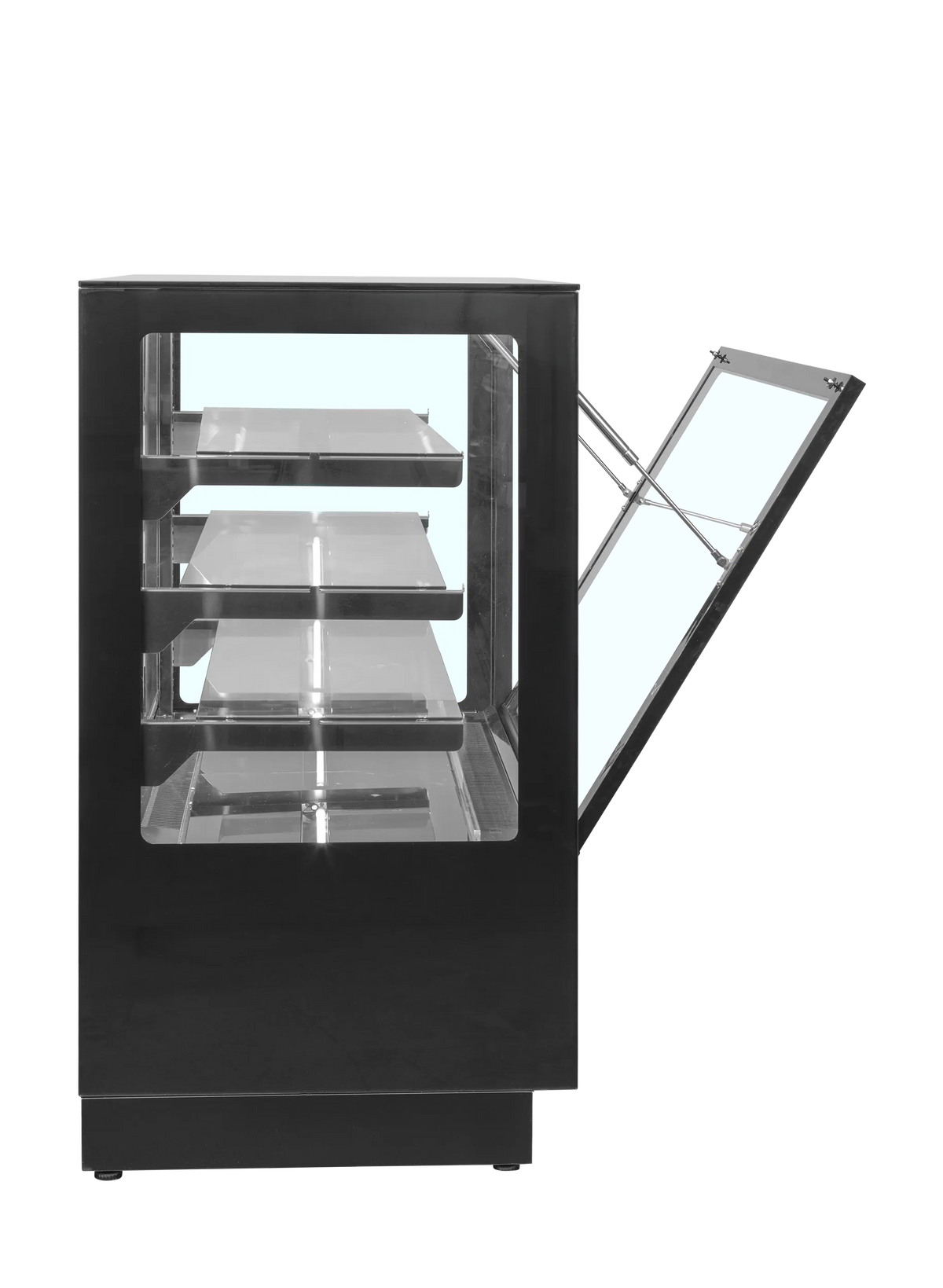

• Front glass can be tilted forward when needed
• Flat top/glass top
• Sliding glass doors at the rear

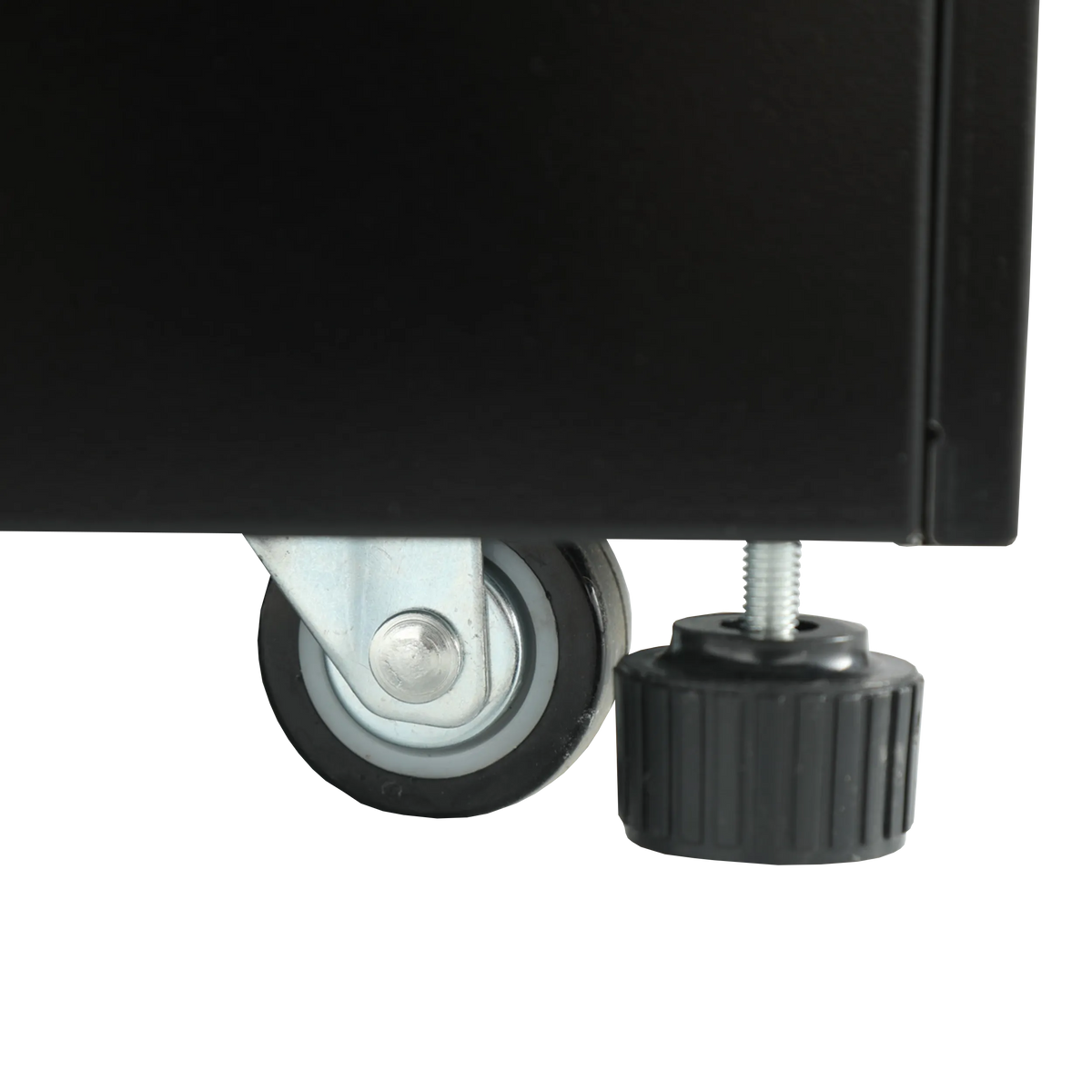

• Adjustable feet and castors
• Digital control and temperature display
• Condenser filter is easy to clean

Download user manual

Specifications

Dimensions and capacity

• Gross/net weight: 240 / 180 kg
• Gross/net volume: 390 / 248 l
• Total display area: 1.52 m²
• Temperature range: -1 to +5 °C
• Climate class: 3

Design and materials

• Exterior: Black / glass
• Interior: Stainless steel / glass
• Number and type of doors: 2 sliding glass doors
• Reversible door: Yes

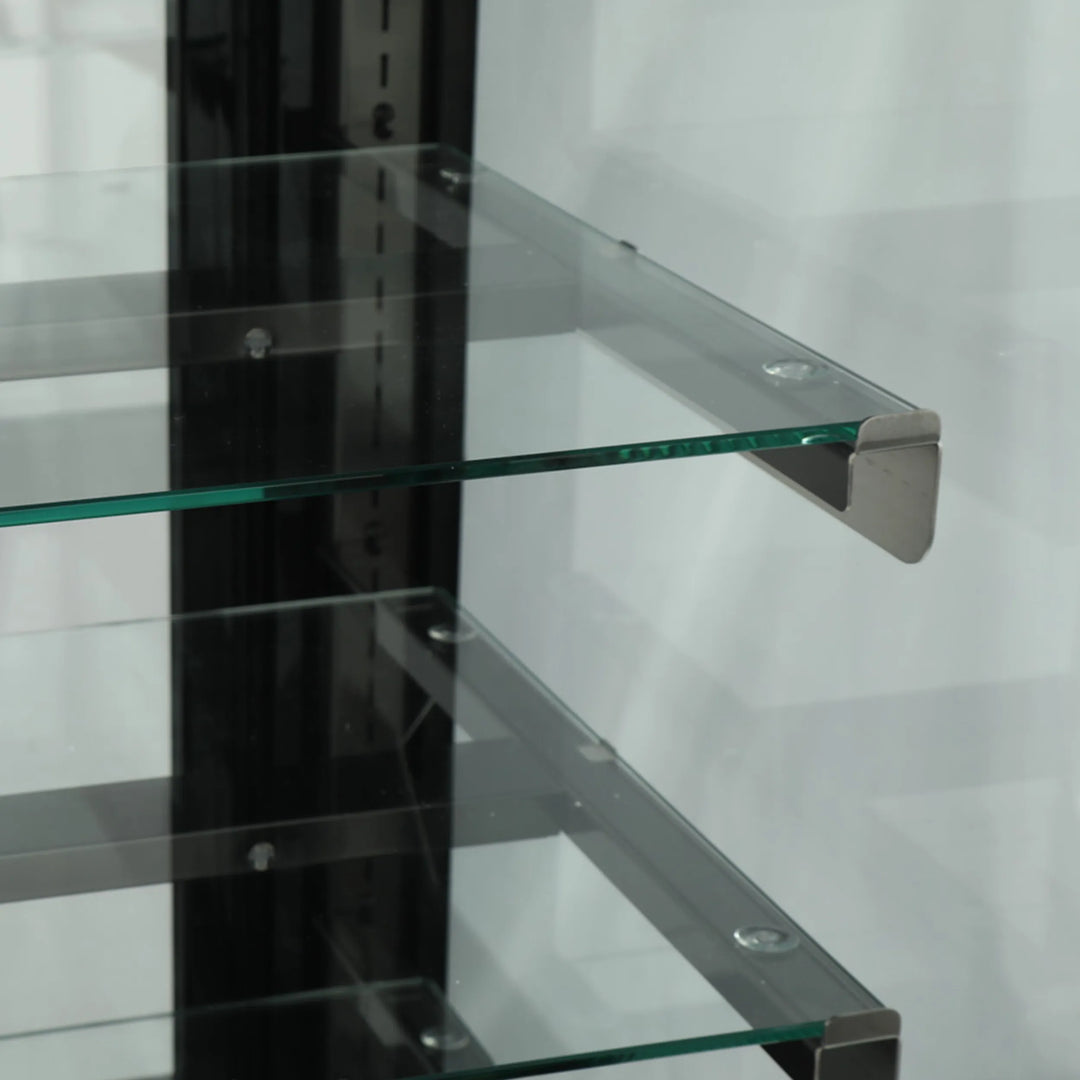

• Number and type of shelves: 3 glass shelves + bottom shelf
• Shelf dimensions: 797 x 400 mm
• Castors: 4 castors
• Interior lighting: LED

Cooling and features

• Thermostat type: Electronic
• Defrost type: Automatic
• Refrigerant: R290
• Refrigerant quantity: 80 g
• Thermometer: Yes

Power and consumption

• Energy rating: B
• EPREL No.: 2415552
• Energy consumption: 5.31 kWh/24h
• Annual energy consumption: 1938 kWh/year
• EEI: 18.3 %
• Power: 470 W
• Voltage / Frequency: 220-240/50 V/Hz
• Noise level: 65 dB(A)

Dimensions

• 40' container capacity: 28 units
• GTIN / EAN: 5708181756253
• External dimensions (W x D x H): 900 x 750 x 1360 mm
• Internal dimensions (W x D x H): 840 x 600 x 808 mm
